DBA160

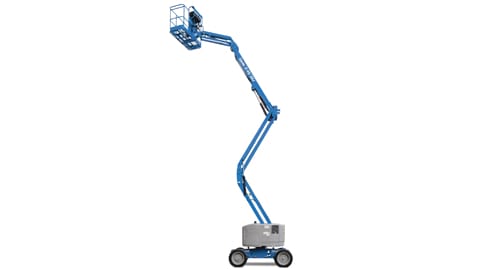

Genie Z45/25JRT
Articulated Boom Lift – 16.0m Diesel
Ready to rent: our Genie Z45/25JRT Articulated boom lifts provides a working height of 16,05 m and a maximum of 8,19 m horizontal reach. The maximum lift capacity for this Genie is 227 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
16,00 m
Outreach
8,19 m
Workload Capacity
227 kg
Own weight
6.123 kg
Platform dimensions (d x w)
0,76 x 1,83 m
Transport dimensions (d x w x h)
6,65 x 2,29 x 2,13 m
Max platform height
14,05 m
Max platform outreach
7,59 m
Up & over height
7,14 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
30,00 %
Usage
Outdoor
Lifting Propulsion
Diesel
Diagram
Downloads
An upgrade in toughness and strength from the well proven
Do you have a job or project where you need an articulating boom lift? You can hire an articulating boom lift from Riwal on attractive price/quality terms. The articulating boom lift is perfect for jobs where there are obstacles at height and is also perfectly suitable for inside use. Have a look at our below listed wide range. Please do not hesitate to contact us if you need any advice. We’d be delighted to tell you more about the benefits of articulating boom lift rental!
