DSP250
Teupen 25T
Spider Lift – 25.0m Diesel

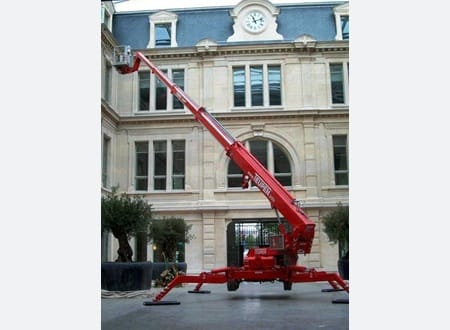

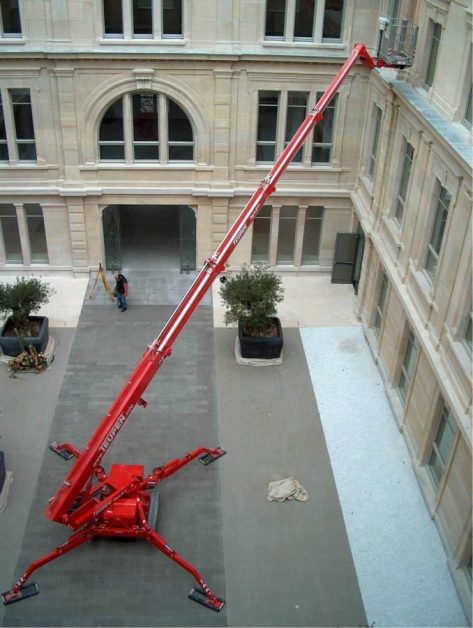

The Teupen 25T Spider lifts provides a working height of 25 m and a maximum of 12 m horizontal reach. The maximum lift capacity for this Teupen is 200 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
25,00 m
Outreach
12,00 m
Workload Capacity
200 kg
Own weight
3.000 kg
Platform dimensions (d x w)
1,2 x 0,8 m
Transport dimensions (d x w x h)
7,22 x 1,78 x 1,98 m
Max platform height
23,00 m
Max platform outreach
12,00 m
Up & over height
2,00 m
Recommended number of people
2
Maneuvering at height
No
Usage
Outdoor, Indoor
Lifting Propulsion
Hybrid

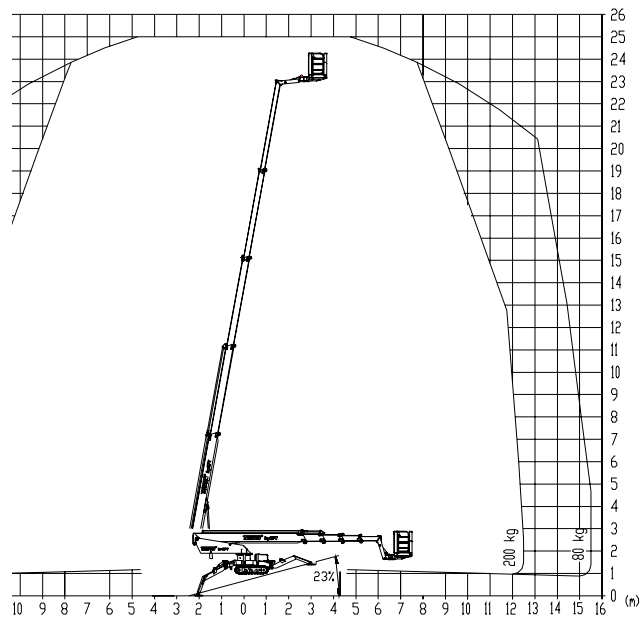

Diagram
Downloads
An upgrade in toughness and strength from the well proven

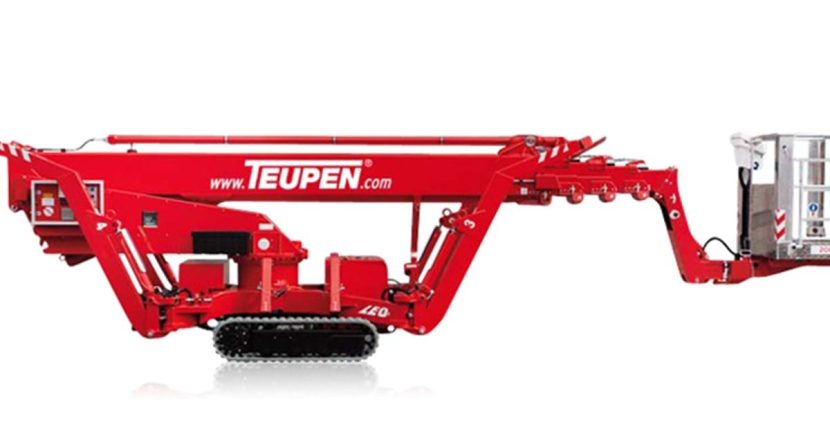

The Teupen LEO 25T spider lift can reach a height of 25,20 meters. The platform capacity is 200 kg. Furthermore, this boom lift allows you to reach almost 16 meters horizontally and can be used both indoors and outdoors. The Teupen LEO 25T spider boom lift is available in two drives: diesel engine and electric motor. Compared to the diesel engine, the electric motor has some advantages. The aerial lift produces no hazardous exhaust and the noise from the motor is much less.
