EBA140

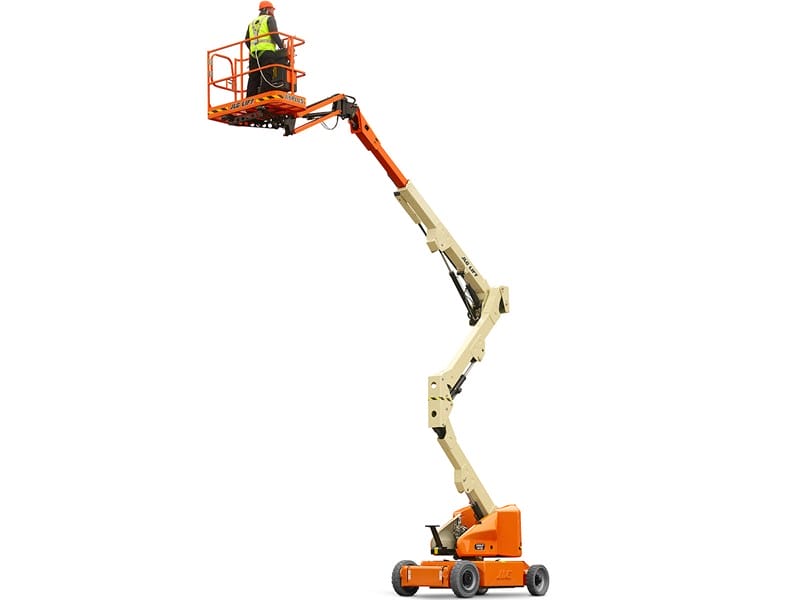

JLG E400AJP
Articulated Boom Lift – 14.0m Electric
International
Ready to rent: our JLG E400AJP Articulated boom lifts provides a working height of 14,2 m and a maximum of 7,5 m horizontal reach. The maximum lift capacity for this JLG is 230 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Electric
Working height
14,00 m
Outreach
7,50 m
Workload Capacity
230 kg
Own weight
6.350 kg
Consumption (average / h)
8,73 kWh
Platform dimensions (d x w)
1,52 x 0,76 m
Transport dimensions (d x w x h)
6,71 x 1,75 x 2,01 m
Max platform height
12,20 m
Max platform outreach
7,50 m
Up & over height
6,55 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
30,00 %
Usage
Indoor, Outdoor
Lifting Propulsion
Electric
Diagram
Downloads
An upgrade in toughness and strength from the well proven
Do you have a job or project where you need an articulating boom lift? You can hire an articulating boom lift from Riwal on attractive price/quality terms. The articulating boom lift is perfect for jobs where there are obstacles at height and is also perfectly suitable for inside use. Have a look at our below listed wide range. Please do not hesitate to contact us if you need any advice. We’d be delighted to tell you more about the benefits of articulating boom lift rental!
