DBA180

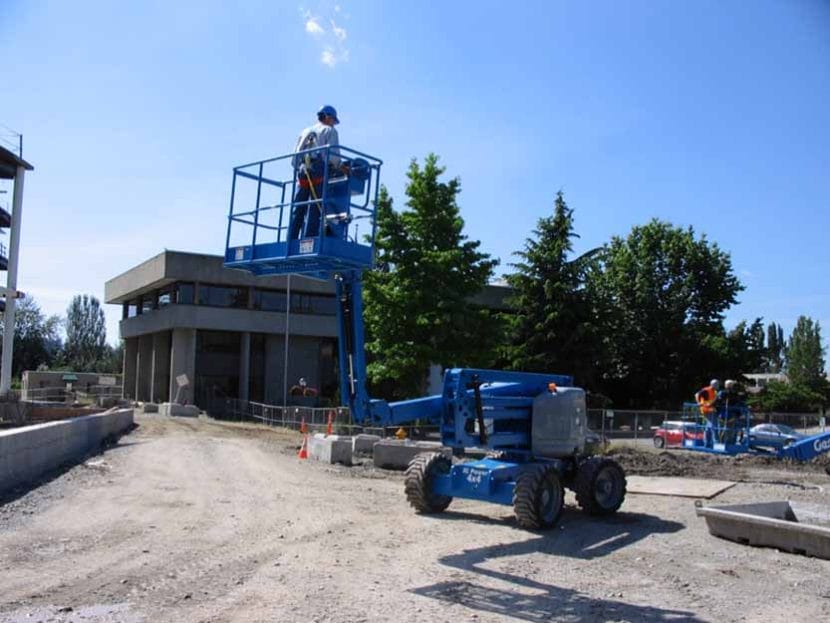

Genie Z51/30JRT
Articulated Boom Lift – 18.0m Diesel
International
Ready to rent: our Genie Z51/30JRT Articulated boom lifts provides a working height of 17,62 m and a maximum of 9,4 m horizontal reach. The maximum lift capacity for this Genie is 227 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
18,00 m
Outreach
9,40 m
Workload Capacity
227 kg
Own weight
7.212 kg
Platform dimensions (d x w)
0,76 x 1,83 m
Transport dimensions (d x w x h)
7,5 x 2,29 x 2,16 m
Max platform height
15,62 m
Max platform outreach
9,40 m
Up & over height
7,39 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
45,00 %
Usage
Outdoor
Lifting Propulsion
Diesel
Diagram
Downloads
An upgrade in toughness and strength from the well proven
The Genie Z51/30JRT articulating boom lift provides working height of 17.62 m provide lifting versatility with a combination of up, out and over positioning capabilities and outreach that’s second to none. Hydraulic rotation lets you move the platform where you need it. Self-leveling feature keeps the platform level through the entire range of motion. Genie Z51/30JRT diesel boom lift can be deployed in areas with little maneuvering space and on rough terrain.
