ESM078

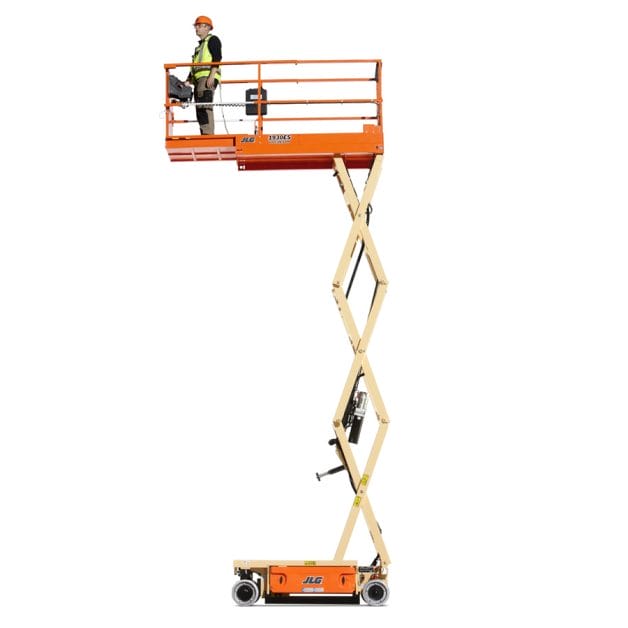

JLG 1930ES
Scissor Lift – 7.8m Electric
The Electric powered JLG 1930ES offers you impressive versatility. With a working height of 7,72 m and a lifting capacity of 230 kg, this rental machine gives you exactly what you need to work efficiently. Ideal for Indoor
Outdoor. The platform is size 1,87 m by 0,76 m.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Electric
Working height
7,72 m
Workload Capacity
230 kg
Own weight
1.565 kg
Consumption (average / h)
5.47 kWh
CO2 emission (average / h)
1,01 kg
Platform dimensions (d x w)
1,87 x 0,76 m
Transport dimensions (d x w x h)
1,87 x 0,76 x 1,98 m
Platform extension length
0,90 m
Max platform height
5,72 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
25,00 %
Usage
Indoor, Outdoor
Lifting Propulsion
Electric
Diagram
Downloads
An upgrade in toughness and strength from the well proven
The JLG 1930ES scissor lift provides working height of 7.6m and is commonly used to work in narrow spaces where one has to move around at heights in order to perform various tasks safely. The JLG 1930ES scissor lift is available in both electric and diesel power sources. The electric scissor lift can be used indoor/outdoor as it follows zero-emission policy as compare to the diesel powered scissor lift which is mainly used for outdoor terrain where larger platform is required with more lifting capacity.
