DBT145
MEC 40S

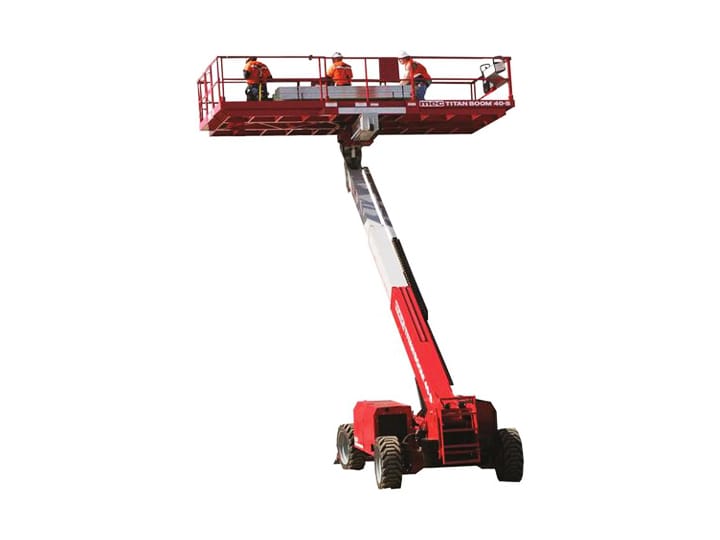

Telescopic Boom Lift – 14.5m Diesel
Ready to rent: our MEC 40S Telescopic boom lifts provides a working height of 14,2 m and a maximum of 8 m horizontal reach. The maximum lift capacity for this MEC is 1.800 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
14,20 m
Outreach
8,00 m
Workload Capacity
1.800 kg
Own weight
10.860 kg
Consumption (average / h)
4.2 l/hour
CO2 emission (average / h)
4,37 kg
Platform dimensions (d x w)
6,70 x 2,28 m
Transport dimensions (d x w x h)
6,90 x 2,44 x 2,00 m
Max platform height
12,20 m
Max platform outreach
8,00 m
Ground clearance
0,46 m
Drive speed
6,40 km/u
Recommended number of people
3+
Maneuvering at height
Yes
Gradeability
40,00 %
Usage
Outdoor, Offroad
Lifting Propulsion
Diesel
Diagram
Downloads
An upgrade in toughness and strength from the well proven
Manlift offers well maintained and highly efficient telescopic boom lifts for rent based on requirements.
The MEC Titan 40S offers working height of 14.2 m and 6.7m x 2.28m deck area.
