Genie Z33/18

Articulated Boom Lift – 12.0m Electric

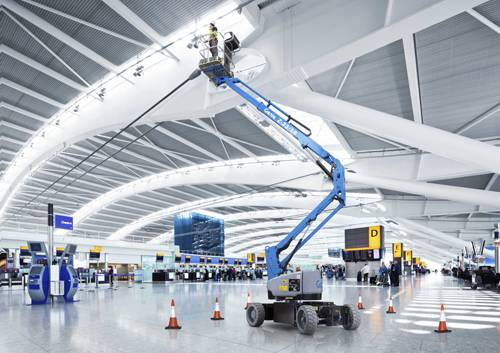

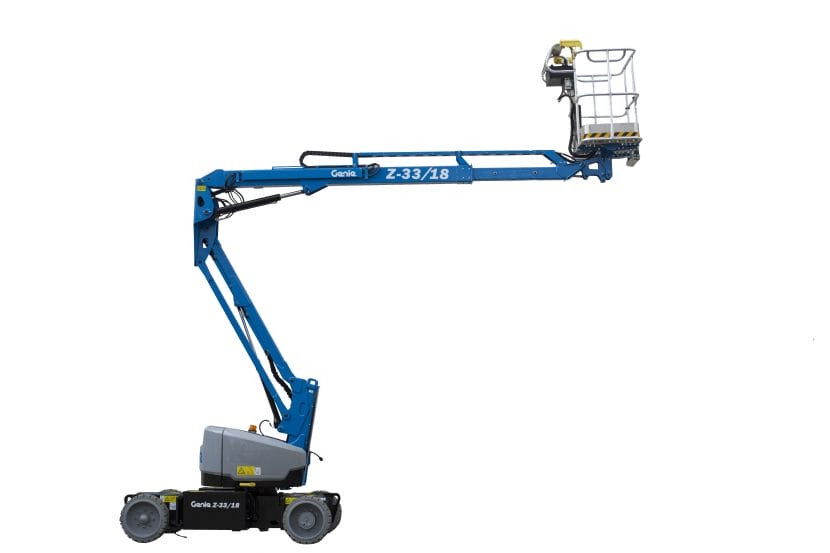

The Genie Z33/18 is a articulated boom lift with a working height of 12 m and a 200 kg platform capacity. Equiped with 400° turntable rotation for precise positioning at height, and a Genie Fast Mast for increased efficiency. Driveable at full height.

Rent this machine

Need help with rental?
Safety gear required
Technical data
Driving propulsion
Electric
Working height
12,00 m
Outreach
5,60 m
Workload Capacity
200 kg
Own weight
3.665 kg
Consumption (average / h)
8,73 kWh
Platform dimensions (d x w)
0,76 x 1,17 m
Transport dimensions (d x w x h)
4,17 x 1,5 x 1,98 m
Max platform height
10,00 m
Max platform outreach
5,60 m
Up & over height
4,28 m
Recommended number of people
1
Maneuvering at height
Yes
Gradeability
30,00 %
Usage
Indoor, Outdoor
Lifting Propulsion
Electric
Diagram
Downloads

An upgrade in toughness and strength from the well proven

Driveable at full height for added productivity in high-rise spaces. 400° turntable rotation for precise positioning at height. Genie Fast Mast™ boom system allows operators to descend and retrieve materials and to quickly return to work at height. Proportional controls for lift and drive functions
