Haulotte HA12PX - Articulated boom lift

DBA125

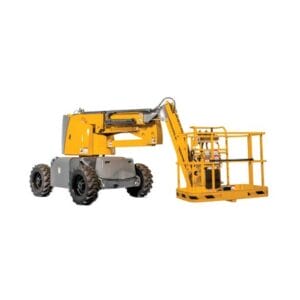

Haulotte HA12PX

Articulated Boom Lift – 12.5m Diesel

HAULOTTE HA12PX is a diesel powered articulating boom lift which used to work at height safely and require to perform several task including painting, cleaning and maintenance services, it is also use to perform construction operations. Whether articulating or telescopic boom lift's, Manlift offer​s highly reliable and well maintained Haulotte boom lifts for rent so that people can work safely and efficiently at heights.

Rent this machine

Need help with rental?
Safety gear required
Technical data
Driving propulsion
Diesel
Working height
12,30 m
Outreach
10,40 m
Workload Capacity
230 kg
Own weight
5.540 kg
Consumption (average / h)
3,40 kWh
CO2 emission (average / h)
9,08 kg
Platform dimensions (d x w)
1,20 x 0,80m
Transport dimensions (d x w x h)
5,64 x 1,85 x 2,14m
Max platform height
10,30 m
Max platform outreach
10,40 m
Up & over height
5,70 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
40,00 %
Usage
Outdoor
Lifting Propulsion
Diesel
Diagram
Downloads

An upgrade in toughness and strength from the well proven

The HAULOTTE HA12PX is a reliable articulating boom lift which offers working height of 12.04 m. Articulated Boom Lifts (designed to reach up and over an object, articulated boom lifts have one or even two articulating joints in the main boom enabling the machine to have a large outreach potential.). HAULOTTE HA 12 PX boom lifts are mostly used by construction industry as it can eaisly move around on rough surfaces.
