DBA480

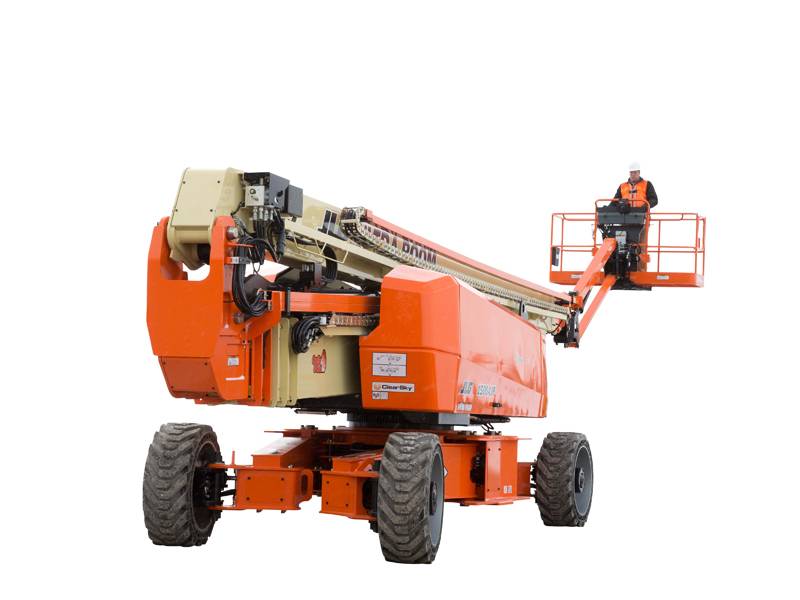

JLG 1500AJP
Articulated Boom Lift – 48.0m Diesel
Articulating boom lift is one of the most reliable machine to work at heights there are several tasks one has to perform on heights such as painting, cleaning and maintenance services, it is also used by construction industry to carry out various operations at height safely. Whether articulating or telescopic boom lift's, Manlift offers highly reliable and well maintained JLG boom lifts for rent so that people can work safely and efficiently at heights.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
48,20 m
Outreach
23,60 m
Workload Capacity
270 kg
Own weight
26.027 kg
Consumption (average / h)
11,10 kWh
CO2 emission (average / h)
19,76 kg
Platform dimensions (d x w)
0,91 x 2,44m
Transport dimensions (d x w x h)
12,10 x 2,50 x 3,10m
Max platform height
46,20 m
Max platform outreach
23,60 m
Up & over height
18,40 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
40,00 %
Usage
Outdoor
Lifting Propulsion
Diesel
Diagram
Downloads
Specification Sheet Manufacturer
JLG 1500AJP Specification sheet EN.pdf
03 Feb 2024
pdf
304.46 kb
BIM Model
Construction_Lifts_Riwal_EnginePoweredArticulatingBoomLifts_1001194422_1500AJP_ STOWED_POSITION.ifc
03 Feb 2024
ifc
24.47 mb
BIM Model
Construction_Lifts_Riwal_EnginePoweredArticulatingBoomLifts_1001194422_1500AJP_HORIZONTAL_OUTREACH.ifc
03 Feb 2024
ifc
24.39 mb
BIM Model
Construction_Lifts_Riwal_EnginePoweredArticulatingBoomLifts_1001194422_1500AJP_PLATFORM_HEIGHT.ifc
03 Feb 2024
ifc
24.47 mb
BIM Model
Construction_Lifts_Riwal_EnginePoweredArticulatingBoomLifts_1001194422_1500AJP.rfa
10 Apr 2024
rfa
14.17 mb
Specification Sheet Manlift
MANLIFT_specsheet_JLG-1500AJP_en_manlift.pdf
10 Apr 2024
pdf
77.33 kb
An upgrade in toughness and strength from the well proven
The JLG 1500AJP articulating boom lift provides working height of 48.15 m with great deal of flexilblity. Articulated Boom Lifts (designed to reach up and over an object, articulated boom lifts have one or even two articulating joints in the main boom enabling the machine to have a large outreach potential). Diesel powered JLG 1500AJP are highly suitable for outside jobs that require flexible machinery to take your staff and equipment up in the air safely.
