DBA480

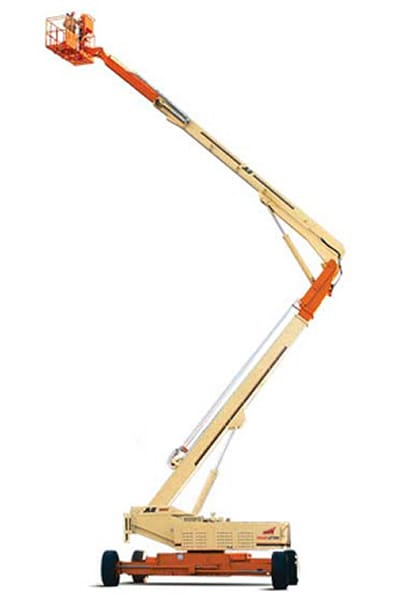

JLG 150HAX

Articulated Boom Lift – 48.0m Diesel

Articulating boom lift is one of the most reliable machine to work at heights there are several tasks one has to perform on heights such as painting, cleaning and maintenance services, it is also used by construction industry to carry out various operations at height safely. Whether articulating or telescopic boom lift's, Manlift offer​s highly reliable and well maintained JLG boom lifts for rent so that people can work safely and efficiently at heights.

Rent this machine

Need help with rental?
Safety gear required
Technical data
Driving propulsion
Diesel
Working height
47,70 m
Outreach
24,40 m
Workload Capacity
230 kg
Own weight
26.500 kg
Consumption (average / h)
7.4 l/hour
CO2 emission (average / h)
19,76 kg
Platform dimensions (d x w)
0,91 x 2,44m
Transport dimensions (d x w x h)
12,01 x 3,51 x 4,27m
Max platform height
45,70 m
Max platform outreach
24,40 m
Up & over height
24,41 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
31,00 %
Usage
Outdoor
Lifting Propulsion
Diesel

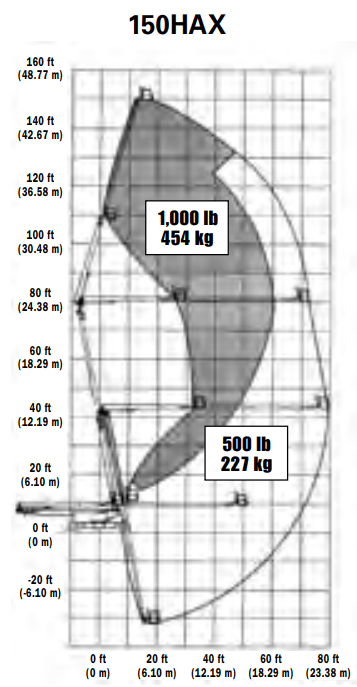

Diagram
Downloads

An upgrade in toughness and strength from the well proven

The JLG 150 HAX articulating boom lift provides working height of 47.5 m with great deal of flexilblity. Articulated Boom Lifts (designed to reach up and over an object, articulated boom lifts have one or even two articulating joints in the main boom enabling the machine to have a large outreach potential). Diesel powered JLG 150 HAX are highly suitable for outside jobs that require flexible machinery to take your staff and equipment up in the air safely.
