JLG M600JP - Telescopic boom lift
JLG M600JP - Telescopic boom lift
Arrow-left
Arrow-right

EBT200

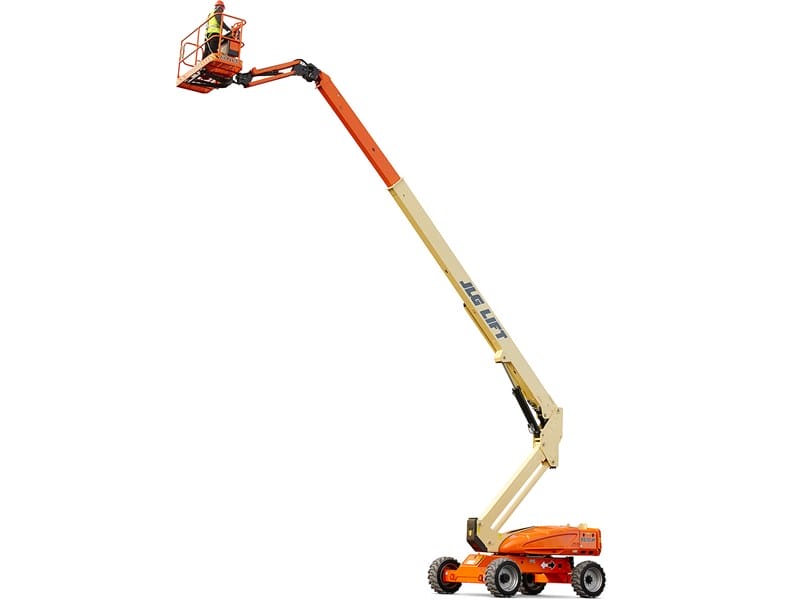

JLG E600JP

Telescopic Boom Lift – 20.0m Electric

An electric boom lift which is efficient to work at heights to perform several task including painting, cleaning and maintenance services, it is also used by minor construction operations that require to work at height safely. Manlift offer​s well maintained JLG E600JP boom lift for rent.

Rent this machine

Need help with rental?
Need help with rental? Hire now
Safety gear required
Technical data
Driving propulsion
Electric
Working height
20,00 m
Outreach
13,50 m
Workload Capacity
230 kg
Own weight
7.815 kg
Consumption (average / h)
8,73 kWh
Platform dimensions (d x w)
2,44 x 0,76 m
Transport dimensions (d x w x h)
10,15 x 2,42 x 2,54 m
Max platform height
18,40 m
Max platform outreach
13,50 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
30,00 %
Usage
Indoor, Outdoor
Lifting Propulsion
Electric
Diagram
Downloads
Specification Sheet Manufacturer
JLG E600JP Specification sheet EN.pdf
03 Feb 2024
pdf
842.83 kb
BIM Model
MANLIFT_Construction_SiteConstruction_JLG_E600JP_HORIZONTAL_POSITION.ifc
10 Apr 2024
ifc
24.23 mb
BIM Model
MANLIFT_Construction_SiteConstruction_JLG_E600JP_STOWED_POSITION.ifc
10 Apr 2024
ifc
24.24 mb
BIM Model
MANLIFT_Construction_SiteConstruction_JLG_E600JP_VERTICAL_POSITION.ifc
10 Apr 2024
ifc
24.24 mb
BIM Model
MANLIFT-JLG-E600JP.rfa
10 Apr 2024
rfa
25.27 mb
Specification Sheet Manlift
MANLIFT_specsheet_JLG-E600JP_en_manlift.pdf
10 Apr 2024
pdf
68.23 kb

An upgrade in toughness and strength from the well proven

The JLG E600JP is the largest electric boom lift offers working height of 20.39 m with reliablity and safety. JLG E600JP electric boom lifts are mostly used in warehouses, factories, shopping malls and other areas where zero emission standards need to be followed. Standard Automatic Traction Control for enhanced terrain performance and increased manoeuvrability. High-efficiency direct electric drive with longer duty cycles for increased productivity. Increased accessibility with the optional JibPLUS® with side-to-side movement and near-vertical jib operation.
