EVM078

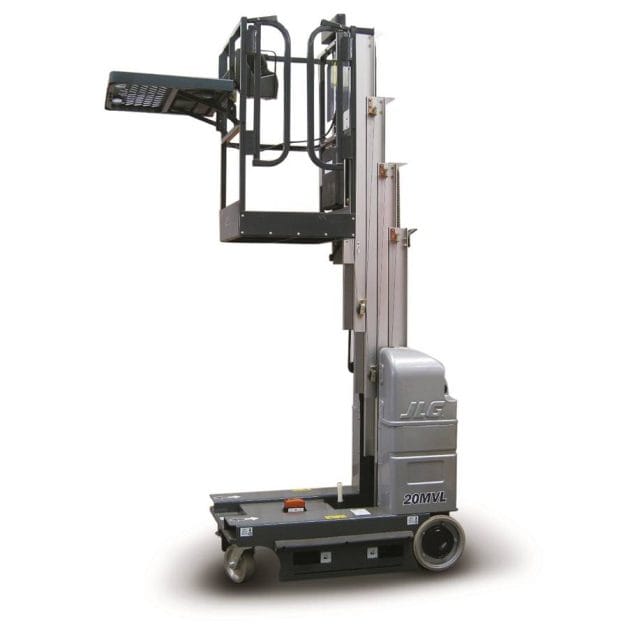

JLG 20MVL

Vertical Mast Lift – 7.8m Electric

The JLG 20MVL driveable mast boom lift is driveable up to full height and has excellent manoeuverability. It has a heavy duty electric drive system for high-cycle operations and sealed AGM batteries mean zero maintenance or spillage. Working height 7,98 m and 160 kg platform capacity.

Rent this machine

Need help with rental?
Safety gear required
Technical data
Driving propulsion
Electric
Working height
7,80 m
Workload Capacity
159 kg
Own weight
1.055 kg
Consumption (average / h)
8,73 kWh
Platform dimensions (d x w)
0,71 x 0,66 m
Transport dimensions (d x w x h)
1,36 x 0,75 x 1,98 m
Max platform height
5,70 m
Recommended number of people
1
Maneuvering at height
Yes
Gradeability
20,00 %
Usage
Indoor
Lifting Propulsion
Electric

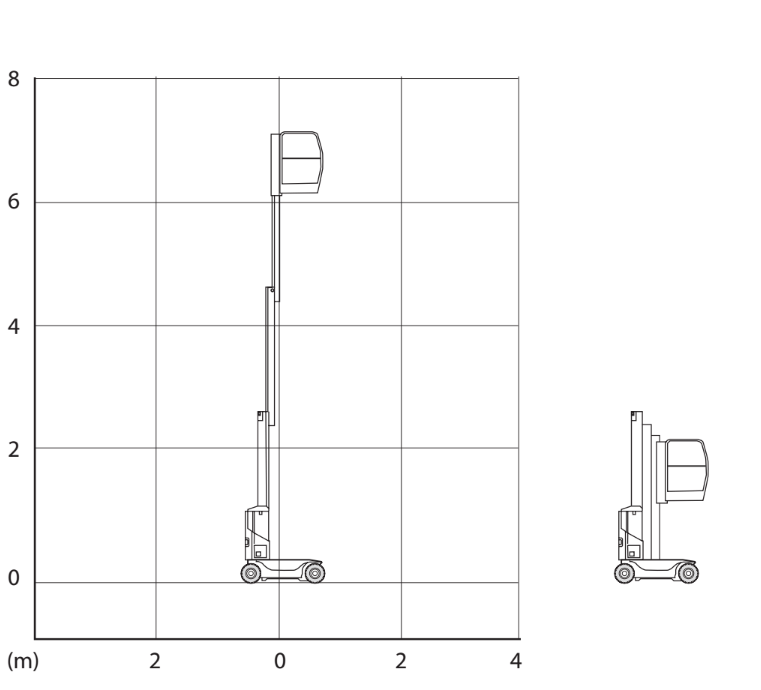

Diagram
Downloads

An upgrade in toughness and strength from the well proven

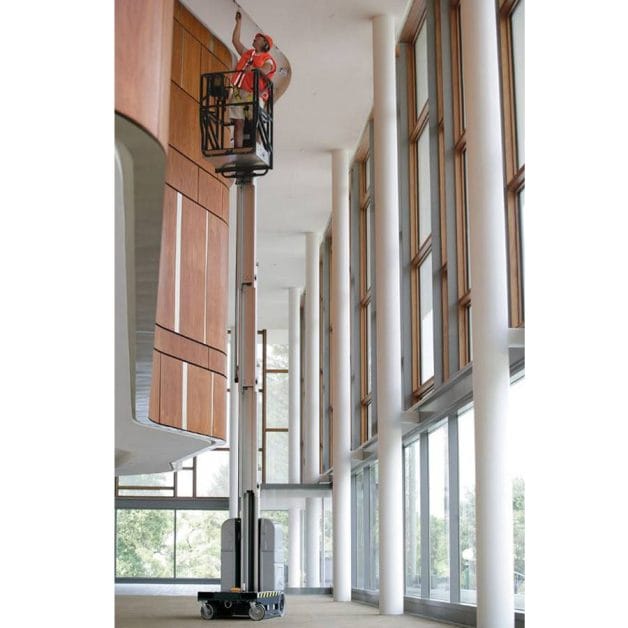

A vertical aerial work platform is small, easy to operate and ifeal if you need to carry out work on, for example, ceilings. Single man lifts are particularly suitable for cleaning activities. Because the vertical aerial work platform can be operated sideways as well as up and down, it gives you a very comfortable reach. The single man lift’s oscillating cage also supports this.
