DBA205
Genie Z60/34
Articulated Boom Lift – 20.5m Diesel
A Z boom lift by Genie is one of the most flexible machines to work at heights, ideally used to work outdoor construction and industrial applications. Manlift offers highly reliable and well maintained Genie boom lifts for rent based on different requirements.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
20,39 m
Outreach
11,10 m
Workload Capacity
227 kg
Own weight
10.215 kg
Consumption (average / h)
5.4 l/hour
CO2 emission (average / h)
5,62 kg
Platform dimensions (d x w)
0,91 x 2,44 m
Transport dimensions (d x w x h)
8,15 x 2,46 x 2,69 m
Max platform height
18,39 m
Max platform outreach
11,10 m
Up & over height
8,23 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
45,00 %
Usage
Outdoor
Lifting Propulsion
Electric

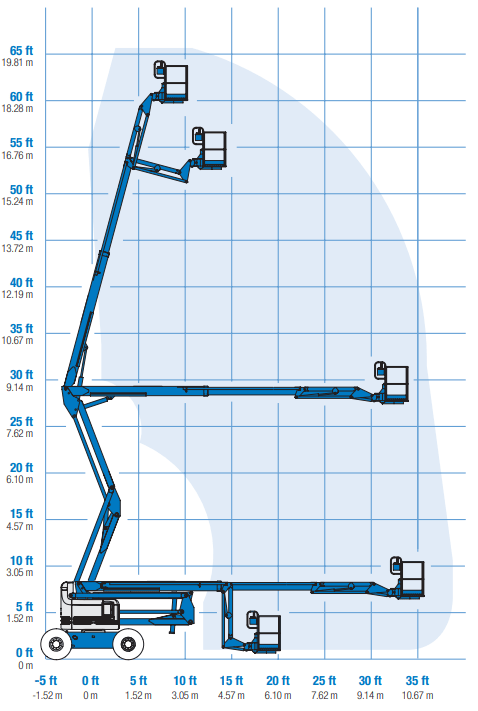

Diagram
Downloads
An upgrade in toughness and strength from the well proven
The Genie Z60/34 articulating boom lift provides working height of 20.39 m provide lifting versatility with a combination of up, out and over positioning capabilities and outreach that’s second to none. Hydraulic rotation lets you move the platform where you need it. Self-leveling feature keeps the platform level through the entire range of motion. Genie Z60/34 diesel boom lift can be deployed in areas with little maneuvering space and on rough terrain.
