DSW120

JLG 330LRT

Scissor Lift – 12.0m Diesel

The JLG 330LRT four-wheel drive rough terrain scissor lift has front axle adjustment and a three-speed selectable gearbox. The big advantage is its load capacity of 680 kg and its 2,18 x 3,81 m platform size, with additional 1,22 m platform extensions on both sides. The machine can be driven at maximum height.

Rent this machine

Need help with rental?
Need help with rental? Hire now
Safety gear required
Technical data
Driving propulsion
Diesel
Working height
12,00 m
Workload Capacity
909 kg
Own weight
5.614 kg
Consumption (average / h)
3.2 l/hour
CO2 emission (average / h)
3,33 kg
Platform dimensions (d x w)
1,79 x 3,86 m
Transport dimensions (d x w x h)
4,88 x 2,35 x 2,17 m
Platform extension length
1,14 m
Max platform height
10,00 m
Maneuvering at height
Yes
Gradeability
45,00 %
Usage
Outdoor
Lifting Propulsion
Diesel

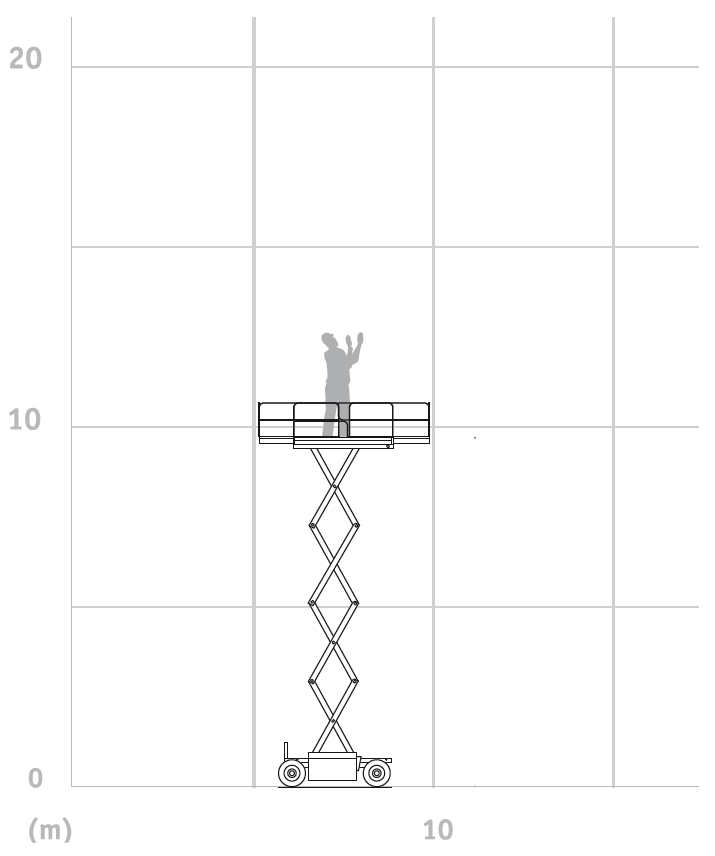

Diagram
Downloads
Specification Sheet Manufacturer
JLG 330LRT Specification sheet EN.pdf
03 Feb 2024
BIM Model
Construction_SiteConstruction_Riwal_JLG_330LRT.rfa
10 Apr 2024
Specification Sheet Manlift
MANLIFT_specsheet_JLG-330LRT_en_manlift.pdf
12 Apr 2024
