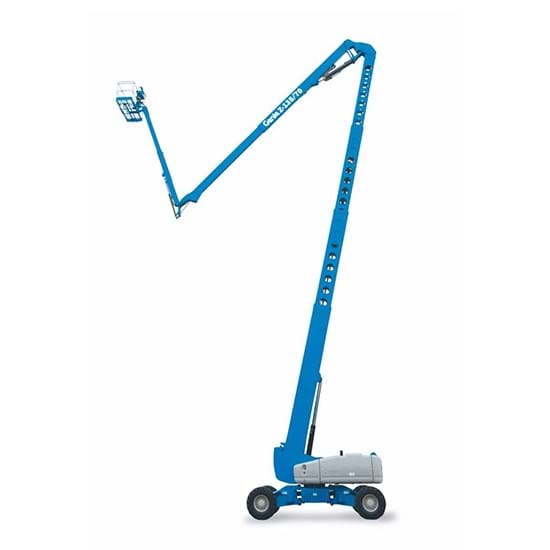

Genie Z135/70 - Articulated boom lift

DBA430

Genie Z135/70

Articulated Boom Lift – 43.0m Diesel

A Z boom lift by Genie is one of the most flexible machines to work at heights. Whether articulated or telescopic boom lift's, Manlift offers highly reliable and well maintained boom lifts from Genie so that people can work safely.

Rent this machine

Need help with rental?
Safety gear required
Technical data
Driving propulsion
Diesel
Working height
43,00 m
Outreach
21,30 m
Workload Capacity
272 kg
Own weight
20.502 kg
Platform dimensions (d x w)
0,91 x 2,44 m
Transport dimensions (d x w x h)
12,93 x 2,46 x 3,09 m
Max platform height
41,15 m
Max platform outreach
21,30 m
Up & over height
23,01 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
45,00 %
Usage
Outdoor
Lifting Propulsion
Diesel
Diagram
Downloads

An upgrade in toughness and strength from the well proven

The Genie Z135/70 articulating boom lift provides working height of 43.15 m. Ideally used for outdoor construction and industrial applications Genie’s engine-powered articulating Z booms provide lifting versatility with a combination of up, out and over positioning capabilities and outreach. Quiet diesel engine options for increased performance, gradeability and terrainability. Genie Z135/70 diesel boom lift can be deployed in areas with little maneuvering space and on rough terrain.
