JLG 4069LE - Scissor lift

ESS140

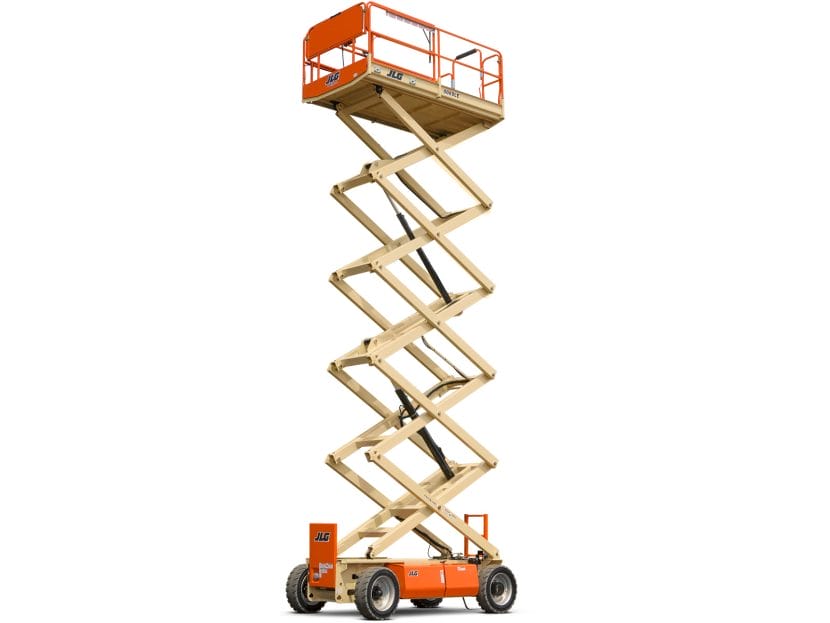

JLG 4069LE

Scissor Lift – 13.6m Electric

Scissor lift is one of the most frequently used aerial work platforms which is required to work at heights safely. It is useful to perform​ not only​ various tasks such as cleaning and painting,​ but​ also it​ is​ used in many construction and industrial installation applications. Manlift offers ​a ​wide range of well maintained JLG Scissor lifts for rent based on different customer requirements.​

Rent this machine

Need help with rental?
Need help with rental? Hire now
Safety gear required
Technical data
Driving propulsion
Electric
Working height
14,19 m
Workload Capacity
360 kg
Own weight
5.300 kg
Consumption (average / h)
8,73 kWh
Platform dimensions (d x w)
2,92 x 1,65m
Transport dimensions (d x w x h)
3,07 x 1,75 x 2,04m
Max platform height
12,20 m
Maneuvering at height
Yes
Gradeability
35,00 %
Usage
Outdoor, Indoor
Lifting Propulsion
Electric
Diagram
Downloads
Specification Sheet Manufacturer
JLG 4069LE Specification sheet EN.pdf
03 Feb 2024
pdf
2.49 mb
BIM Model
MANLIFT_Construction_SiteConstruction_JLG_4069LE_STOWED_POSITION.ifc
10 Apr 2024
ifc
34.30 mb
BIM Model
MANLIFT_Construction_SiteConstruction_JLG_4069LE_VERTICAL_POSITION.ifc
10 Apr 2024
ifc
34.32 mb
BIM Model
MANLIFT-JLG-4069LE.rfa
10 Apr 2024
rfa
22.34 mb
Specification Sheet Manlift
MANLIFT_specsheet_JLG-4069LE_en_manlift.pdf
12 Apr 2024
pdf
59.60 kb

An upgrade in toughness and strength from the well proven

The JLG 4069LE scissor lift provides working height of 14.19 m and is commonly used to work in narrow spaces where one has to move around at heights in order to perform various tasks safely. Quieter and cleaner operation makes it preferred scissor lift to work indoor. Tight turning radius provides flexibility in moving around narrow spaces. The JLG 4069 LE scissor lift is available in an electric scissor lift which is can be used indoor/outdoor as it follows zero-emission policy.

Superior performance on or off slab with oscillating axle and automatic traction control (ATC) standard. High-efficiency direct electric drive with double the duty cycle of similar-sized machines keep you on the job longer. Optional hydraulic leveling jacks enhance the capability and versatility of this scissor lift. Environmentally friendly with zero emissions.
