DSW180

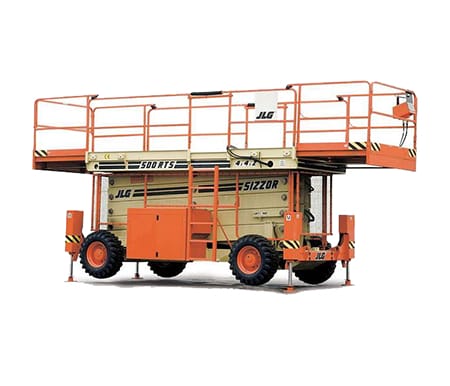

JLG 500RTS

Scissor Lift – 18.0m Diesel

Scissor lift is one of the most frequently used aerial work platforms which is required to work at heights safely. It is useful to perform​ not only​ various tasks such as cleaning and painting,​ but​ also it​ is​ used in many construction and industrial installation applications. Manlift offers ​a ​wide range of well maintained JLG Scissor lifts for rent based on different customer requirements.

Rent this machine

Need help with rental?
Safety gear required
Technical data
Driving propulsion
Diesel
Working height
17,20 m
Workload Capacity
1.134 kg
Own weight
7.802 kg
Consumption (average / h)
3,10 kWh
CO2 emission (average / h)
8,28 kg
Platform dimensions (d x w)
4,27 x 1,80m
Transport dimensions (d x w x h)
4,70 x 2,29 x 3,13m
Max platform height
15,20 m
Maneuvering at height
Yes
Gradeability
35,00 %
Usage
Outdoor
Lifting Propulsion
Diesel
Downloads

An upgrade in toughness and strength from the well proven

The JLG 500RTS scissor lift provides working height of 7.6 m and is commonly used to work in narrow spaces where one has to move around at heights in order to perform various tasks safely. The 500RTS scissor lift is available in diesel powered scissor lift and is mainly used for outdoor terrain where larger platform is required with more lifting capacity.
