DSW220
JLG 203-24

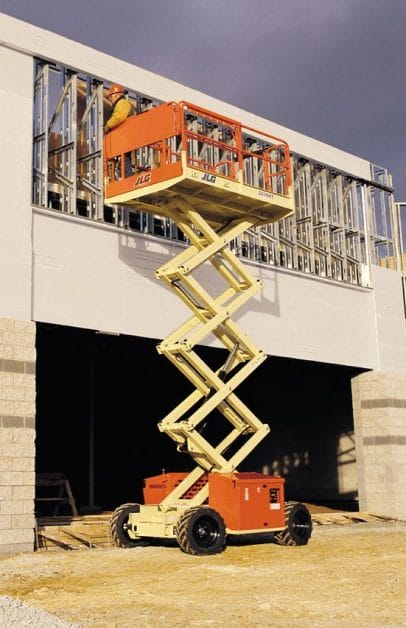

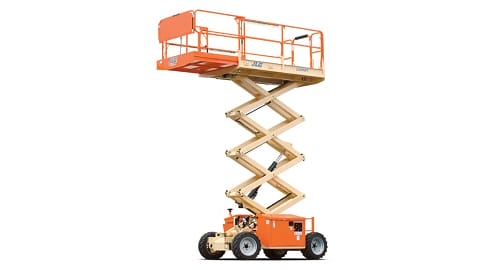

Scissor Lift – 22.0m Diesel
Scissor lift is one of the most commonly used aerial work platforms which is required to work at heights safely. It is useful to perform not only various tasks such as mechanical engineering, facilities management, electrical contracting, cleaning, painting, warehousing and decorating, but also it is used in many construction and industrial installation applications. Manlift offers highly reliable JLG SL203-24 scissor lifts for rent.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
22,30 m
Workload Capacity
750 kg
Own weight
11.400 kg
Consumption (average / h)
4,30 kWh
CO2 emission (average / h)
11,48 kg
Platform dimensions (d x w)
4,35 x 2,30m
Transport dimensions (d x w x h)
4,80 x 2,40 x 2,96m
Max platform height
20,30 m
Maneuvering at height
Yes
Gradeability
25,00 %
Usage
Outdoor
Lifting Propulsion
Diesel
Downloads
An upgrade in toughness and strength from the well proven

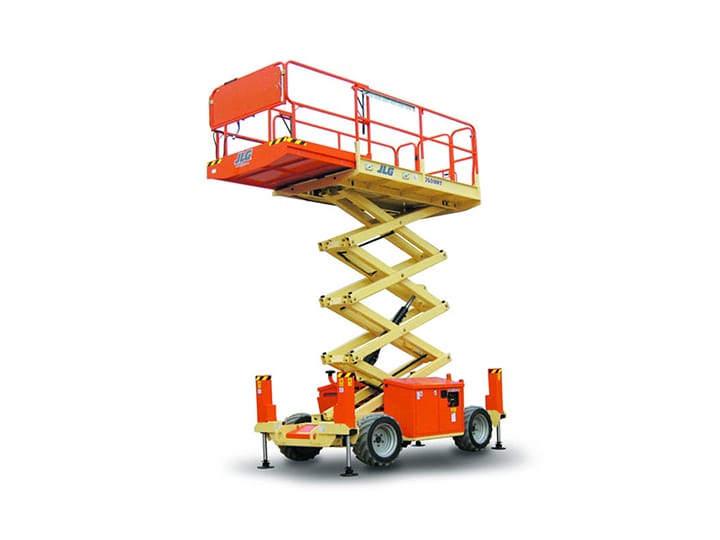

The JLG SL203-24 scissor lift provides working height of 22 m and is commonly used to work in narrow spaces where one has to move around at low level heights in order to perform various tasks safely. The JLG SL203-24 diesel powered scissor lift is highly recommended to work outdoor at heights
