DSP155

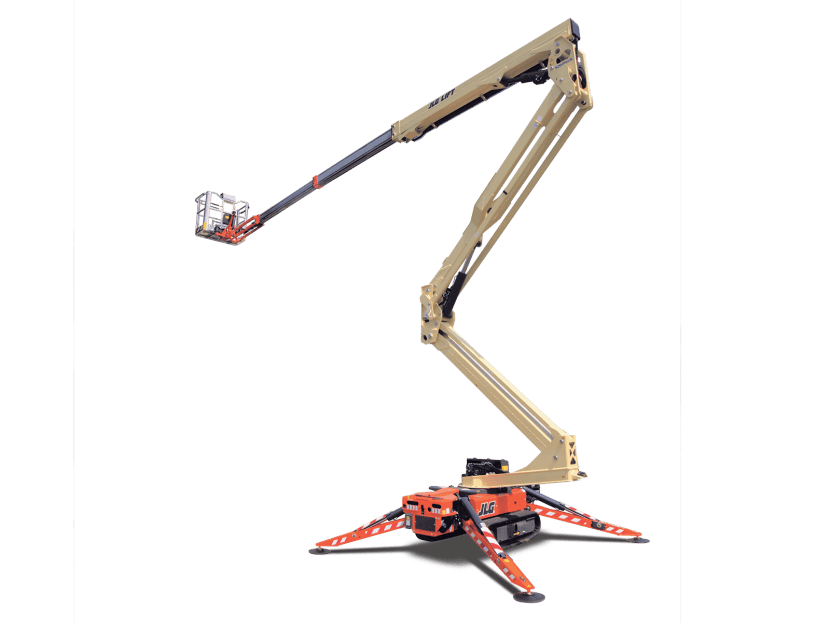

JLG X15J+D
Spider Lift – 15.5m Diesel
The JLG X15J+D is a diesel-powered, quiet and CO2 reduced spider lift from manufacturer JLG. The X15J PLUS articulated boom lift has 6,6 m work outreach and track drive for stability and manoeuverability on soft terrain. Its maximum working height is 15,3 m and its lift capacity is 230 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
15,50 m
Outreach
6,60 m
Workload Capacity
230 kg
Own weight
1.910 kg
Platform dimensions (d x w)
0,69 x 1,34 m
Transport dimensions (d x w x h)
4,02 x 0,75 x 1,99 m
Max platform height
13,30 m
Max platform outreach
6,60 m
Up & over height
7,00 m
Recommended number of people
2
Maneuvering at height
No
Gradeability
28,70 %
Usage
Indoor, Outdoor
Lifting Propulsion
Diesel
Diagram
Downloads
An upgrade in toughness and strength from the well proven
Spider lift is one of the most efficient access platforms to get the job done at height safely. It provides great deal of flexibility in terms of reach especially in narrow areas. Spider lift varies on the basis of working height, power source and lifting capacity. Manlift offers well maintained spider lifts for rent, both electric and diesel powered spider lifts are available.
