DSP310

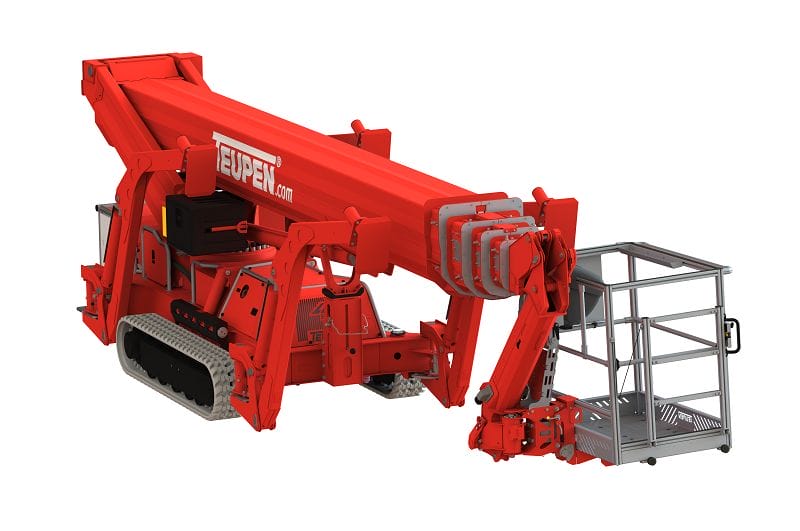

Teupen 31T
Spider Lift – 31.0m Diesel
The Teupen 31T Spider lifts provides a working height of 31 m and a maximum of 17,7 m horizontal reach. The maximum lift capacity for this Teupen is 250 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
31,00 m
Outreach
17,70 m
Workload Capacity
250 kg
Own weight
4.300 kg
Platform dimensions (d x w)
1,20 x 0,80 m
Transport dimensions (d x w x h)
7,23 x 1,58 x 1,98 m
Max platform height
29,00 m
Max platform outreach
17,20 m
Drive speed
4,00 km/u
Up & over height
2,00 m
Maneuvering at height
No
Usage
Indoor, Outdoor
Lifting Propulsion
Hybrid

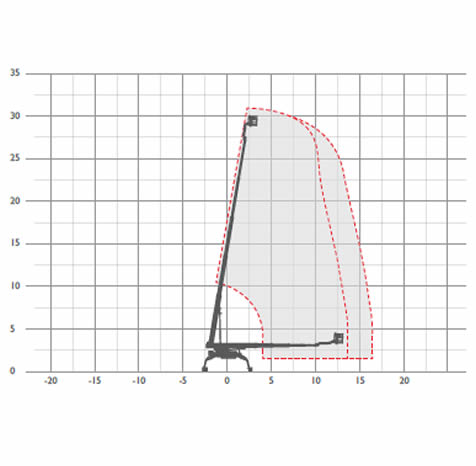

Diagram
Downloads
An upgrade in toughness and strength from the well proven
Spider lift is one of the most efficient access platforms to get the job done at height safely. It provides great deal of flexibility in terms of reach especially in narrow areas. Spider lift varies on the basis of working height, power source and lifting capacity. Manlift offers well maintained spider lifts for rent, both electric and diesel powered spider lifts are available.
