DBT145
MEC 40S
Telescopic Boom Lift – 14.5m Diesel
MEC Titan 40S is an award wining self propelled telescopic boom lift, it provides great deal of flexiblity in terms of performing several operations at height safely. Its offers amazing 180 degree platform rotation plus additional telescope to get close to working areas.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
14,20 m
Outreach
8,00 m
Workload Capacity
1.800 kg
Own weight
10.860 kg
Consumption (average / h)
4.2 l/hour
CO2 emission (average / h)
4,37 kg
Platform dimensions (d x w)
6,70 x 2,28 m
Transport dimensions (d x w x h)
6,90 x 2,44 x 2,00 m
Max platform height
12,20 m
Max platform outreach
8,00 m
Ground clearance
0,46 m
Drive speed
6,40 km/u
Recommended number of people
3+
Maneuvering at height
Yes
Gradeability
40,00 %
Usage
Outdoor, Offroad
Lifting Propulsion
Diesel
Diagram
Downloads
An upgrade in toughness and strength from the well proven
Manlift offers well maintained and highly efficient telescopic boom lifts for rent based on requirements.

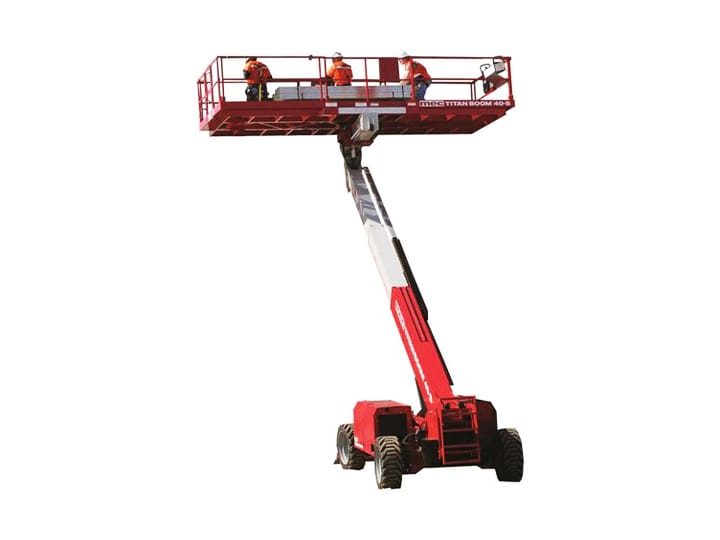

The MEC Titan 40S offers working height of 14.2 m and 6.7m x 2.28m deck area.
