EVM057

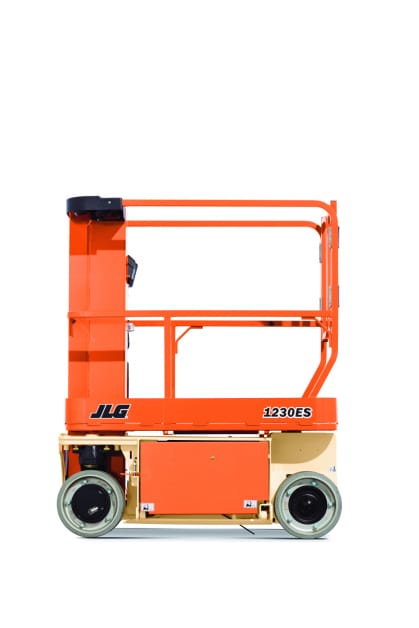

JLG 1230ES
Vertical Mast Lift – 5.7m Electric
JLG 1230ES is a compact vertical designed lift to carry out several options at height safely. It is commonly used in facility managment industry where one has to perform cleaning, or fixing things in tight spaces. Manlift provides highly efficient JLG vertical lifts for rent.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Electric
Working height
5,66 m
Workload Capacity
230 kg
Own weight
790 kg
Consumption (average / h)
8.73 kWh
Platform dimensions (d x w)
1,26 x 0,69 m
Transport dimensions (d x w x h)
1,36 x 0,76 x 1,65 m
Max platform height
3,66 m
Ground clearance
0,07 m
Drive speed
4,80 km/u
Recommended number of people
1
Maneuvering at height
Yes
Gradeability
25,00 %
Usage
Indoor
Lifting Propulsion
Electric
Diagram
Downloads
An upgrade in toughness and strength from the well proven
The JLG 1230ES vertical lift provides working height of 5.6 m. Hydraulically operated vertical steel mast lift with ES scissor drive, power control system provides quiet, clean and smooth operation. Electric front wheel drive provides outstanding manoeuvrability and long duty cycles. Manual roll-out deck extension standard for increased workspace. Integrated component design with two hydraulic hoses reduces potential for leaks and assists maintenance to keep you on the job longer.
