DBA260
Genie Z80/60RT
Articulated Boom Lift – 26.0m Diesel
A Z boom lift by Genie is one of the most flexible machines to work at heights, ideally used to work outdoor construction and industrial applications. Whether articulated or telescopic boom lift's, Manlift offers highly reliable and well maintained Genie boom lifts for rent so that people can work safely.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
25,77 m
Outreach
18,30 m
Workload Capacity
227 kg
Own weight
16.284 kg
Consumption (average / h)
5,40 kWh
CO2 emission (average / h)
14,42 kg
Platform dimensions (d x w)
0,91 x 2,44m
Transport dimensions (d x w x h)
11,27 x 2,49 x 3,00m
Max platform height
23,77 m
Max platform outreach
18,30 m
Up & over height
8,83 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
45,00 %
Usage
Outdoor, Indoor
Lifting Propulsion
Diesel

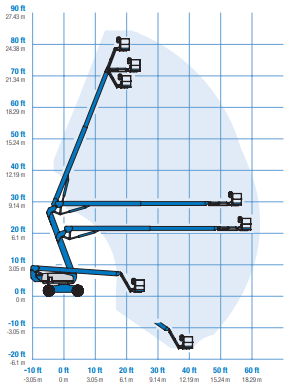

Diagram
Downloads
An upgrade in toughness and strength from the well proven
The GenieZ80/60 articulating boom lift provides working height of 23.8 m. Genie’s engine-powered articulating Z booms provide lifting versatility with a combination of up, out and over positioning capabilities and outreach that’s second to none. Quiet diesel engine options for increased performance, gradeability and terrainability. Genie Z80/60 diesel boom lift can be deployed in areas with little maneuvering space and on rough terrain.
